Magellan 800+

$1,199.99

-







WE’VE UPGRADED A LEGEND!



NOW SHIPPING!!



After 10 years in service, GENZLER® AMPLIFICATION is proud to introduce the next generation of this 800-watt professional, tour-class bass amp — the new MAGELLAN® 800+.   Carrying forward the legacy of night-after-night reliability, the MAGELLAN® 800+ reaches even higher achievements in performance with several new features, improved preamp circuitry, expanded EQ network; all within the same rugged chassis and developed with the same stringent design and build expertise we are known to achieve.

The MAGELLAN® 800+ delivers the most powerful, feature-laden, compact bass amplifier available in its class.  This new model offers improved dynamic response and feel, along with superior low-noise thresholds and increased dynamic headroom.  This is exactly what players have come to expect from the GENZLER® design team – innovation, performance, reliability and versatility.

The MG-800+® provides the tonal pallet needed to cover all the bassist’s amplifier requirements: from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures and dynamic — with “weighted feel to the notes”.  All of this encased in the same classic styling of an all-aluminum chassis, weighing only 6.25 lbs.

The MAGELLAN® 800+ is equipped with an expanded list of features:

  • Updated input circuitry for enhanced instrument loading
  • Foot-switchable DRIVE circuitry
  • Variable HPF (High Pass Filter)
  • Dual Contour Circuit — Foot-switchable and separately adjustable
  • 4 Band Active EQ w/two sweepable midrange frequencies
  • Highest-grade op-amps through-out for lower noise and higher dynamic headroom

SKU: MG-800+ Category:

Description

Continuing the tradition of the original MAGELLAN® amplifier design, the MAGALLAN® 800+ represents a new pinnacle in lightweight, high-output, versatile, bass amplification.  Our years of research, design and manufacturing expertise, along with listening to players’ needs, has helped us to develop this model utilizing stringent design parameters for performance, form, function, fit and finish.  The new MG-800+ continues the reputation of the original design as a simple interface for the user and one of the most musical amplifiers available.

The MG-800+ is a solid-state, all analog design and provides the tonal palette needed to cover all of the bassist’s amplifier requirements; from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”.  This is packaged within the classic Magellan styling and all-aluminum chassis, weighing only 6.25 lbs.

The expanded feature set and output power level make this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN® 800+ can be used with any voltage around the world without modification.

FEATURES:

  • Updated input circuitry for increased dynamics
  • All new DRIVE circuitry delivering a wide range of tube-like harmonics and compression — and foot switchable
  • New HPF (High Pass Filter) — multi-slope, frequency dependent and adjustable between 25-120Hz
  • Our unique Dual Contour Circuit — foot switchable and separately adjustable
  • New 4 Band Active EQ with two Sweepable midrange frequencies
  • New high-grade op-amps for lower noise threshold and higher dynamic headroom, throughout the preamp

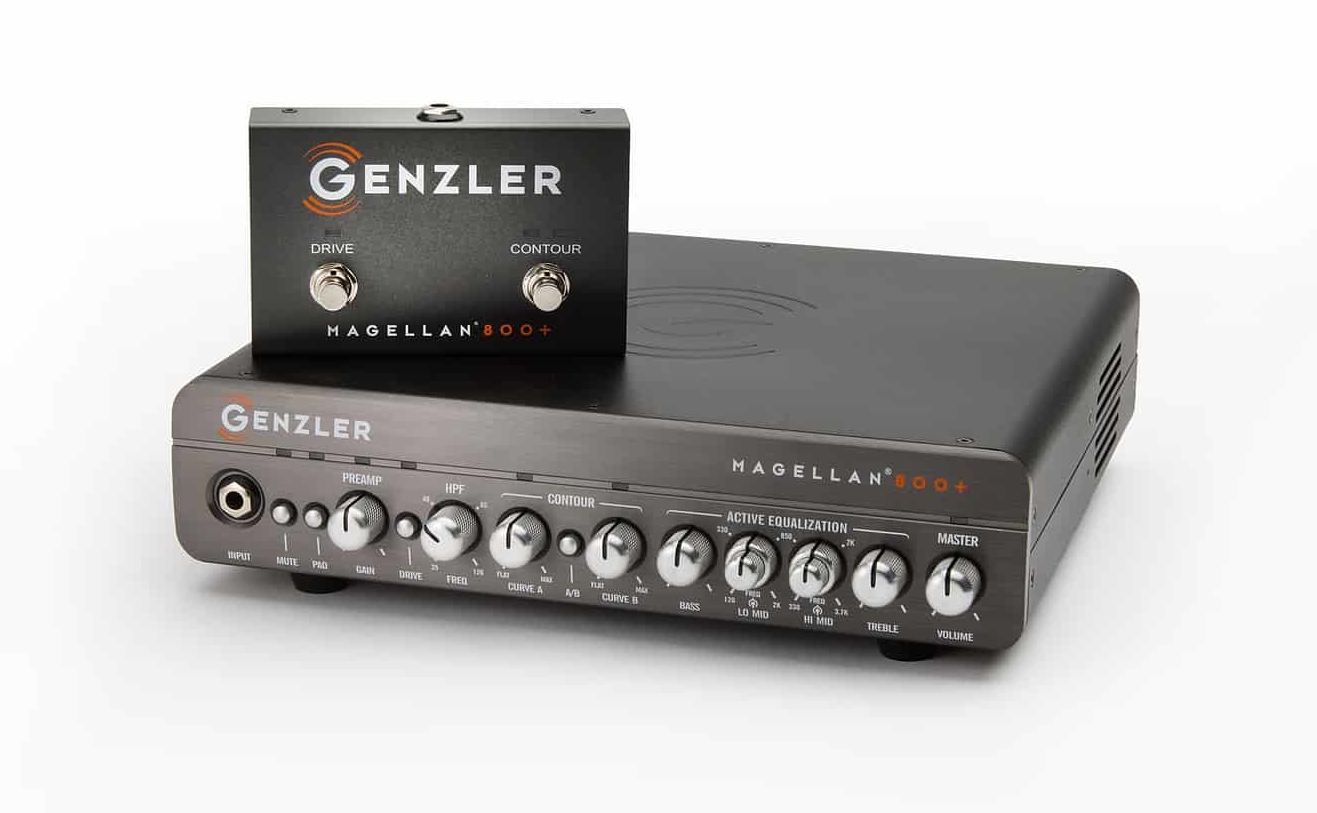

  • Optional dual function footswitch —- DRIVE & CONTOUR functions
  • Light weight @ 6.25 Lbs



Additional information

Weight 9 lbs
Dimensions 17 × 13 × 6 in
UPC

85397006543
Manufacturer

Magellan

Specifications

OVERVIEW / SPECIFICATIONS:

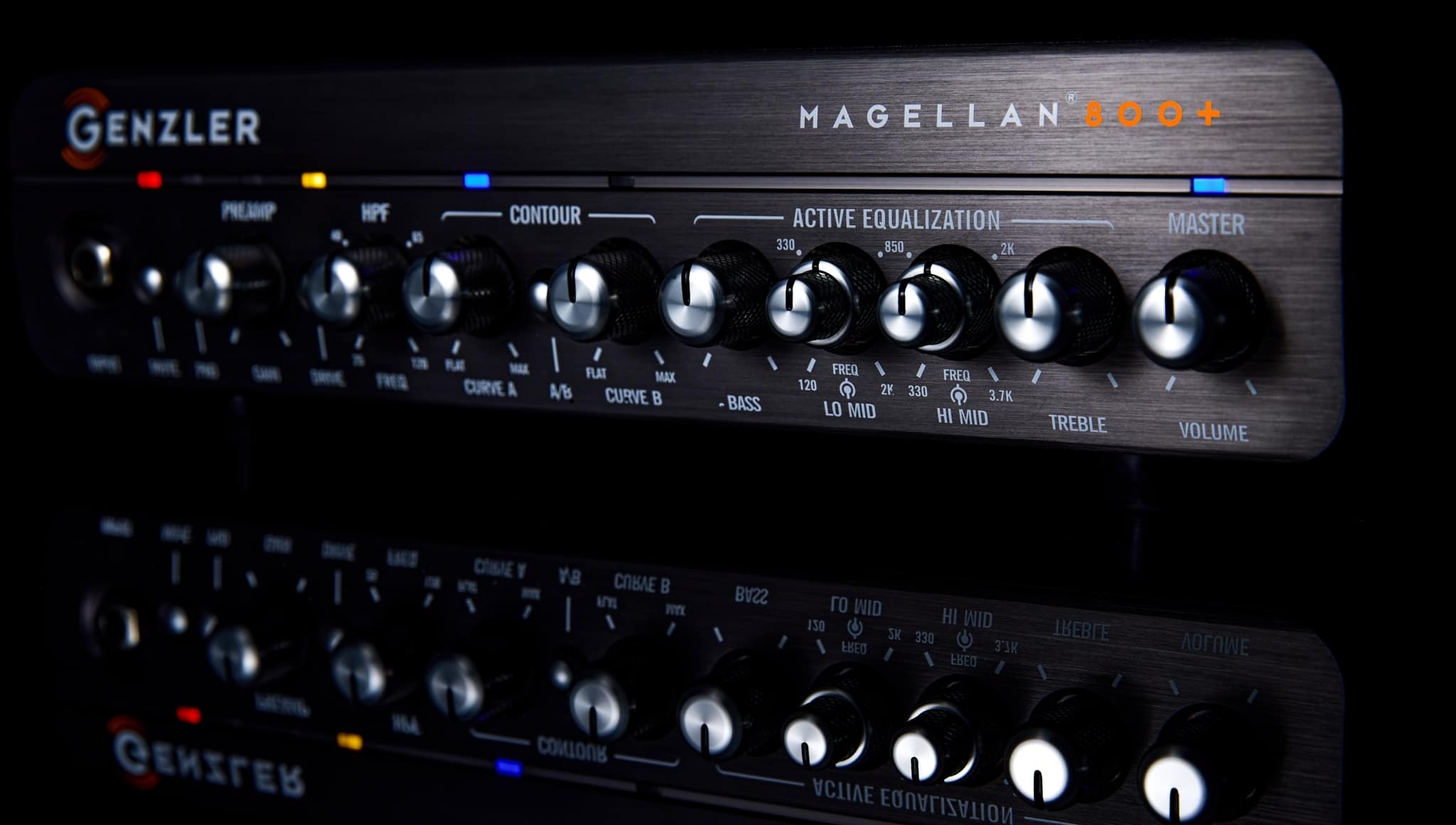

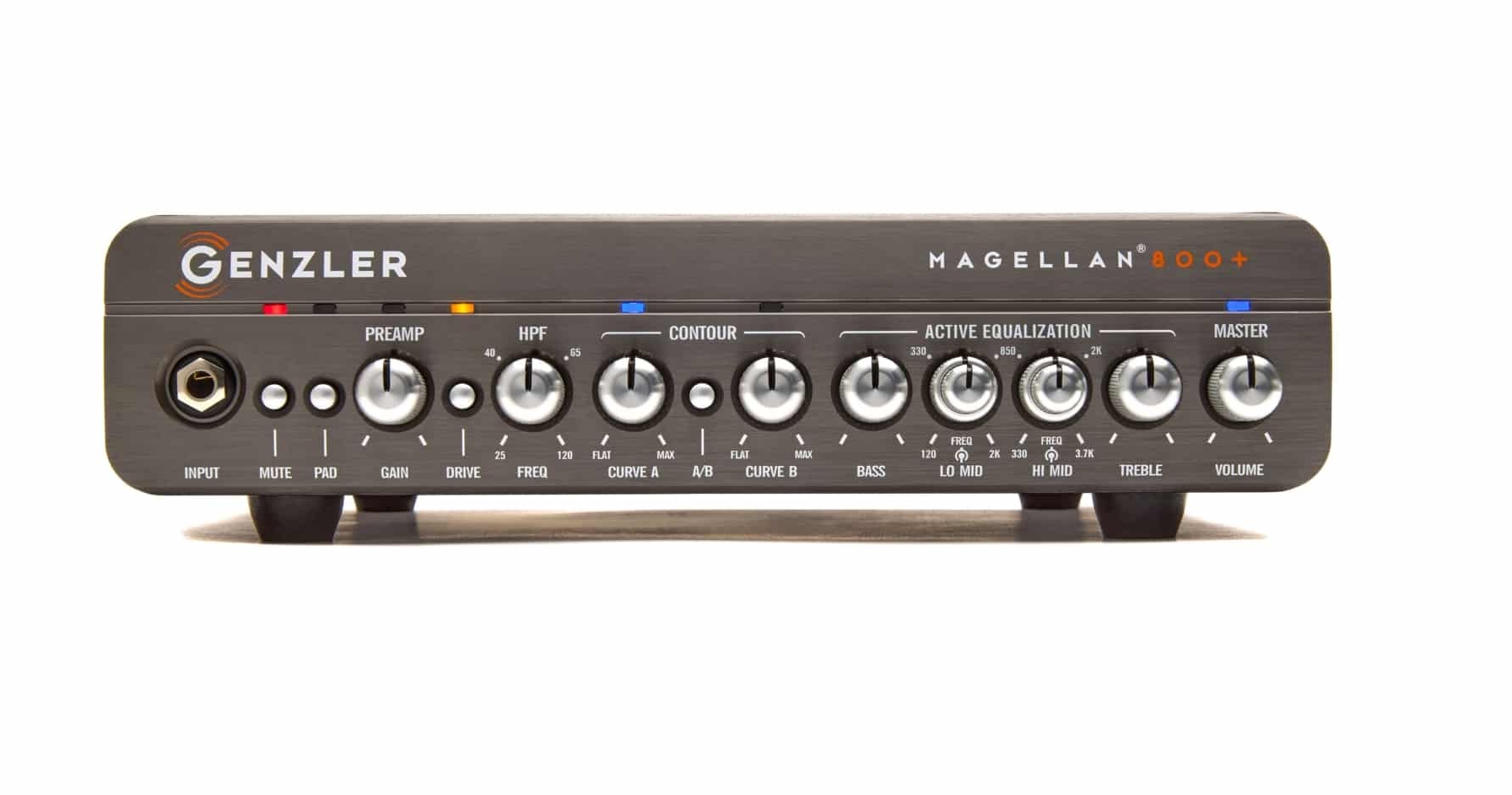

FRONT PANEL FEATURES:

  • ¼” INPUT
  • SIGNAL MUTE SWITCH
  • INPUT PAD (- 8.5dB)
  • GAIN LEVEL CONTROL
  • DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume
  • HPF—HIGH PASS FILTER — Variable from 25 – 120Hz
  • DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable
    • Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs
    • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
    • Flat Position — Full Bypass
  • ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS
  • Bass:         +/- 15dB @ 75Hz
  • Lo Mid:     +/- 15dB variable from 120Hz – 2K Hz
  • High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
  • Treble:       +/- 15dB @ 6K Hz
  • MASTER VOLUME CONTROL

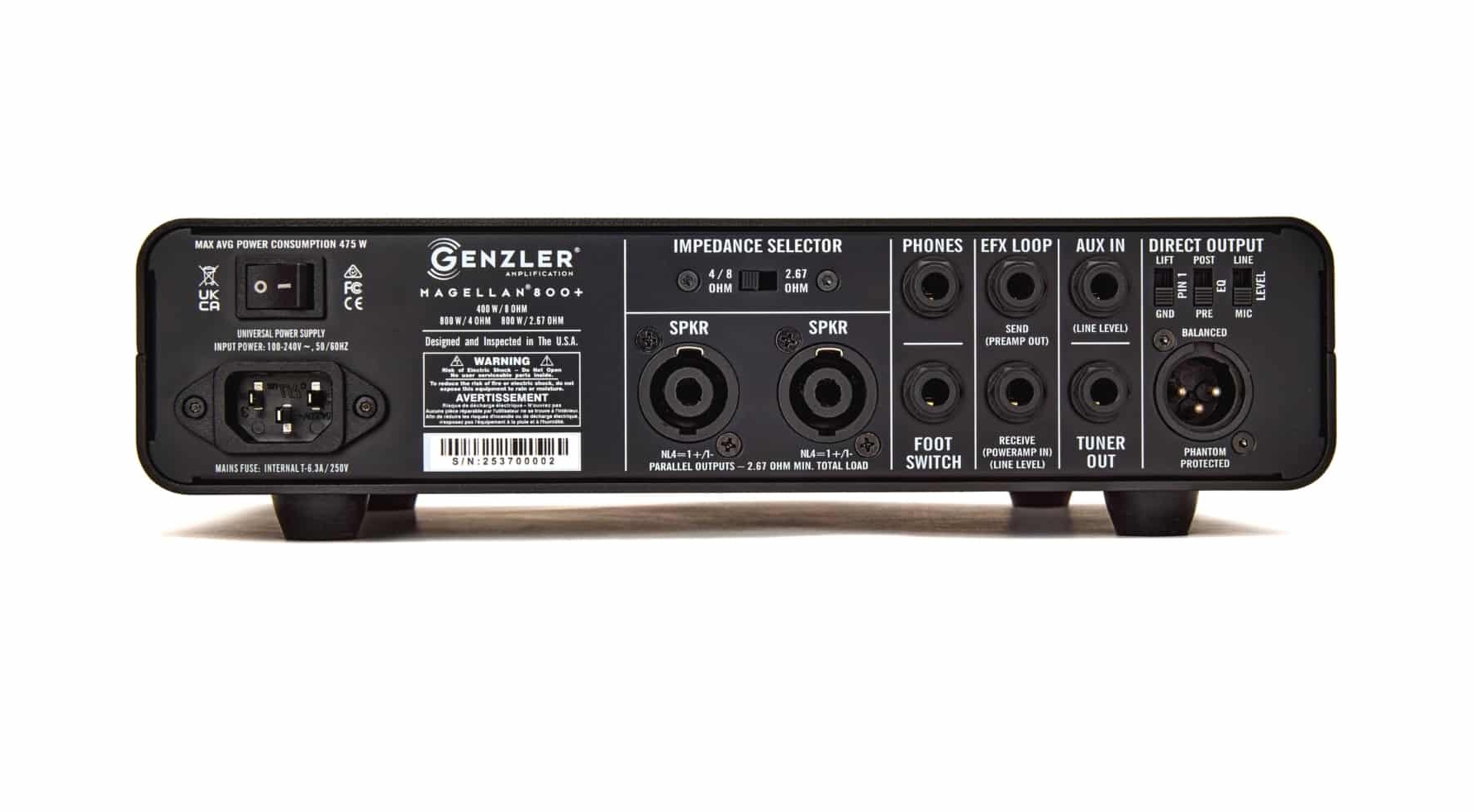

REAR PANEL FEATURES —-

  • IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms
  • DUAL SPEAKON® SPEAKER OUTPUTS
  • HEADPHONE OUTPUT
  • FOOTSWITCH INPUT JACK — For optional 2 button footswitch
  • EFFECTS LOOP
  • TUNER OUTPUT JACK
  • DIRECT OUTPUT INTERFACE — PRE/POST
  • THERMAL SENSING VIARIABLE SPEED FAN COOLING
  • AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL
  • POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots

SPECIFICATIONS:

  • POWER OUTPUT:  400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
  • MINIMUM SPEAKER LOAD:  67 Ohms
  • OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz
  • DIMENSIONS: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
  • WEIGHT: 6.25 LBS (2.83Kg)

SHIPPING DATA:

  • DIMENSIONS: 5”L x 13”D x 5.75”H (419.1mm x 330.2mm x 146.02mm)
  • WEIGHT: 9 LBS (4.08 Kg)



Owner's Manual

MAGELLAN 800+ OWNERS MANUAL
