Magellan-ULV-112T

$1,099.99

-

At 19.5 Lbs—Our Lightest, Most Compact, Single 12″ Cab… Ever!



SHIPPING STARTS EARLY FEB 2026



GENZLER® AMPLIFICATION is proud to announce the new MAGELLAN®ULV series of ULTRA * LIGHT * VERTICAL bass cabinets.  With decades of cabinet design and build expertise, these new models are by far the lightest, most compact bass cabinets Jeff Genzler has ever offered.

These great sounding cabinets are tuned and ported to reproduce the depth and clarity of any bass instrument, with tight low-end support, vocal, mid-range definition, and available top-end shimmer.  The MG-ULV cabs are all vertical designs, with a minimal stage footprint, and are constructed from a new ultra-light, multi-layer, poplar plywood, for its warmth, density and strength, and all cabinets feature full internal acoustic dampening.

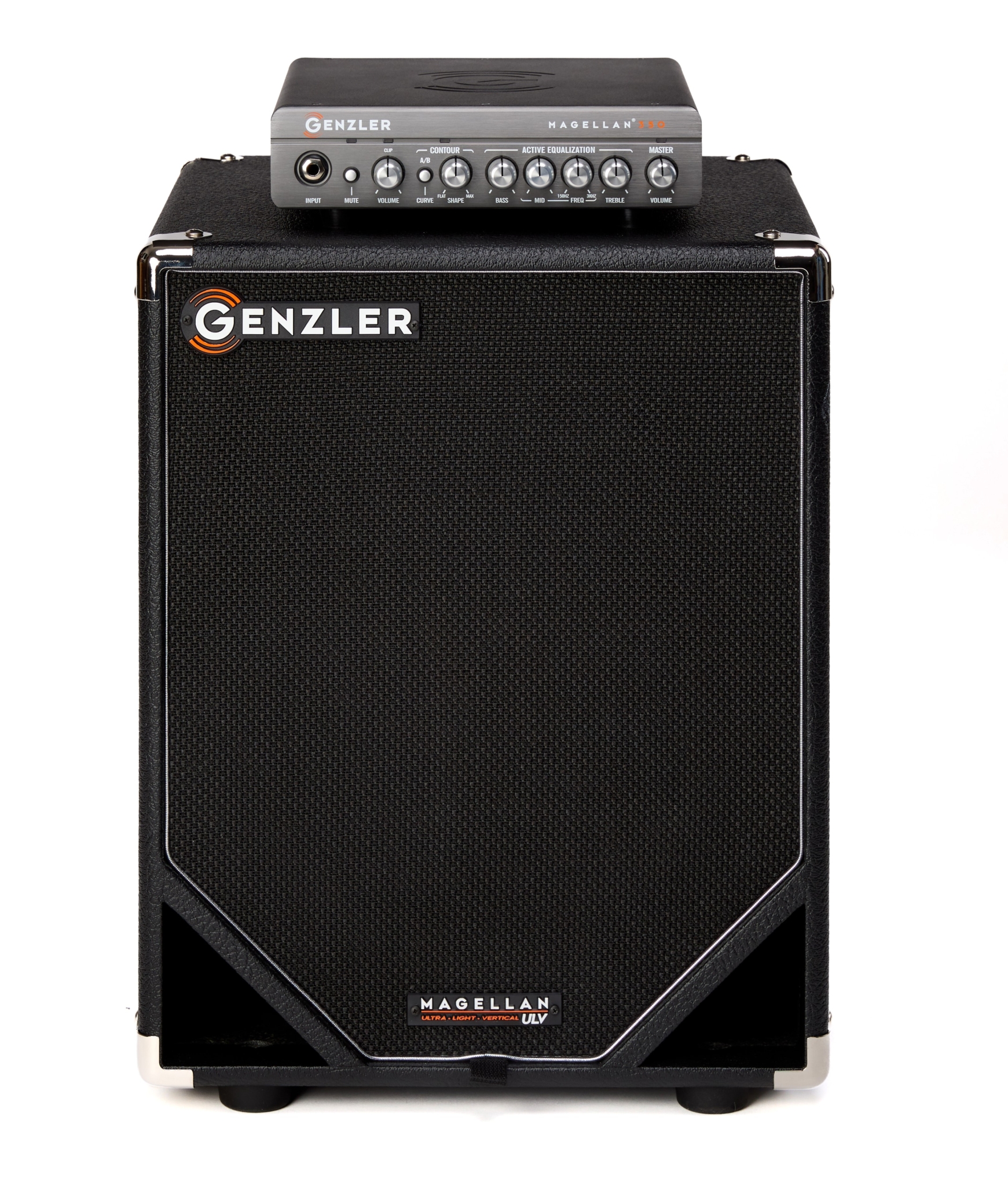

 AT 19.5 lbs, the MG-ULV-112T is one of the lightest, most compact 1 x 12” cabinets on the market.  Constructed from new 12mm ultra-light plywood, this cab delivers its full-body response with modern, yet classic styling.  The vertical design helps to keep the dispersion “off the floor” and providing a taller projection pattern. The distinctive front triangular ports provide an optimum porting design as well as adding structural strength in the corners of the cabinet, delivering the durability of wood construction and an efficient cabinet design. A comfortable edge-mounted bar handle is used at the top and back of the cabinet, for easy “one-hand” carry.  Mounting bolts on the top panel are also provided to accept the MG-350-CRADLE for attaching the MG-350 amp to make this info a compact, high-output bass combo.

Discover what the warmth of wood can bring to the ultra-light cabinet segment. All of this sets the MAGELLAN®ULV series apart from standard bass cabs and defines them as the pinnacle of professional bass amplification equipment, in the smallest, lightest format possible.







SKU: MG-ULV-112T Category:

Description

This new MAGELLAN®ULV series share a heritage to many previous Genzler designs.  The MG-ULV-112T, although extremely compact produces exceptional depth and clarity for its size and weight.  It features a traditional combination of a single 12” high performance neodymium woofer and a compact ultra-smooth compression tweeter.  Although small in size, the low frequencies are strong and solid, easily handling the depth and extension of the low B of the 5-string bass instrument.  This is blended with an articulate and responsive midrange voice and smooth, natural top end, adjustable to personal taste.

FEATURES:

  • 19.5 Lb Vertical Cabinet Design
  • New European, Multi-layer, Ultra-light, Plywood Construction
  • Neodymium 12” Loudspeaker and Compression Tweeter
  • Multi-ported, Internally Braced Cabinet Design
  • Full, Internal Acoustic Dampening
  • Top/Rear Mounted Recessed Handle
  • 12 dB/Octave Crossover w/Tweeter Level Control, SpeakON® & ¼” Jacks

Additional information

Weight 24 lbs
Dimensions 18 × 19 × 23 in
UPC

853974006567

Manufacturer

Magellan

Specifications

SPECIFICATIONS:

Power Handling 350 Watts
Frequency Response 40-15KHz
Sensitivity 1W/1M 98 dB
Nominal Impedance 8 ohm
Crossover Frequency 5.6K Hz
Cabinet Weight 19.5 Lbs / 8.85 Kg
Dimensions – HxWxD 18.125″ x 14.25″ x 14″

46 x 36.19 x 35.56CM

Shipping Data:

  • Carton Dimensions: 23″H x 19″W x 18″D
  • Shipping Weight: 24 Lbs

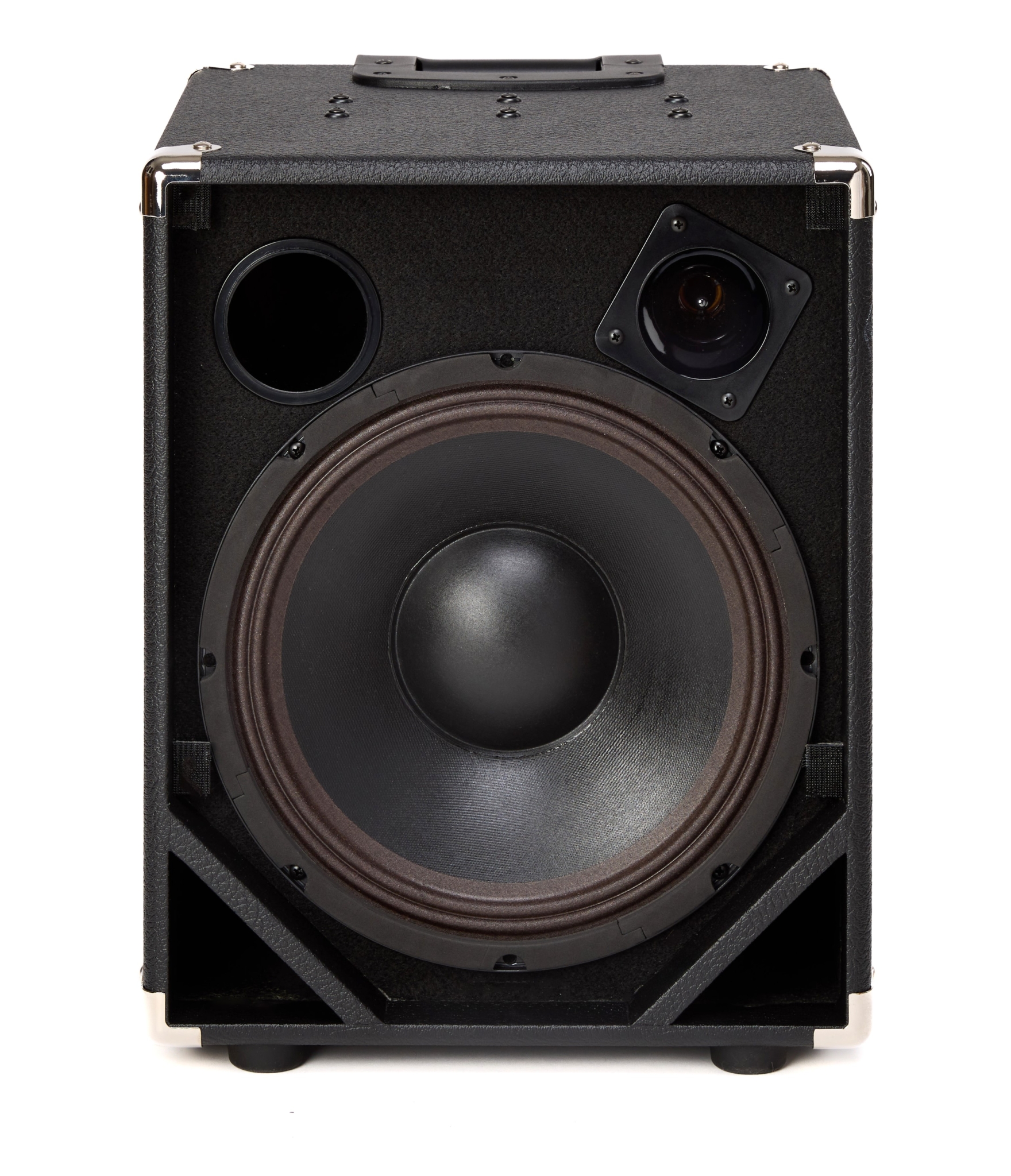

Speaker Components:

  • One — premium Neodymium 12″ loudspeaker utilizing a unique dual-wound voice coil design for increased power handling and efficiency.
  • One — proprietary compact 1” high powered Neodymium bullet tweeter for extended range and smooth high frequency response.

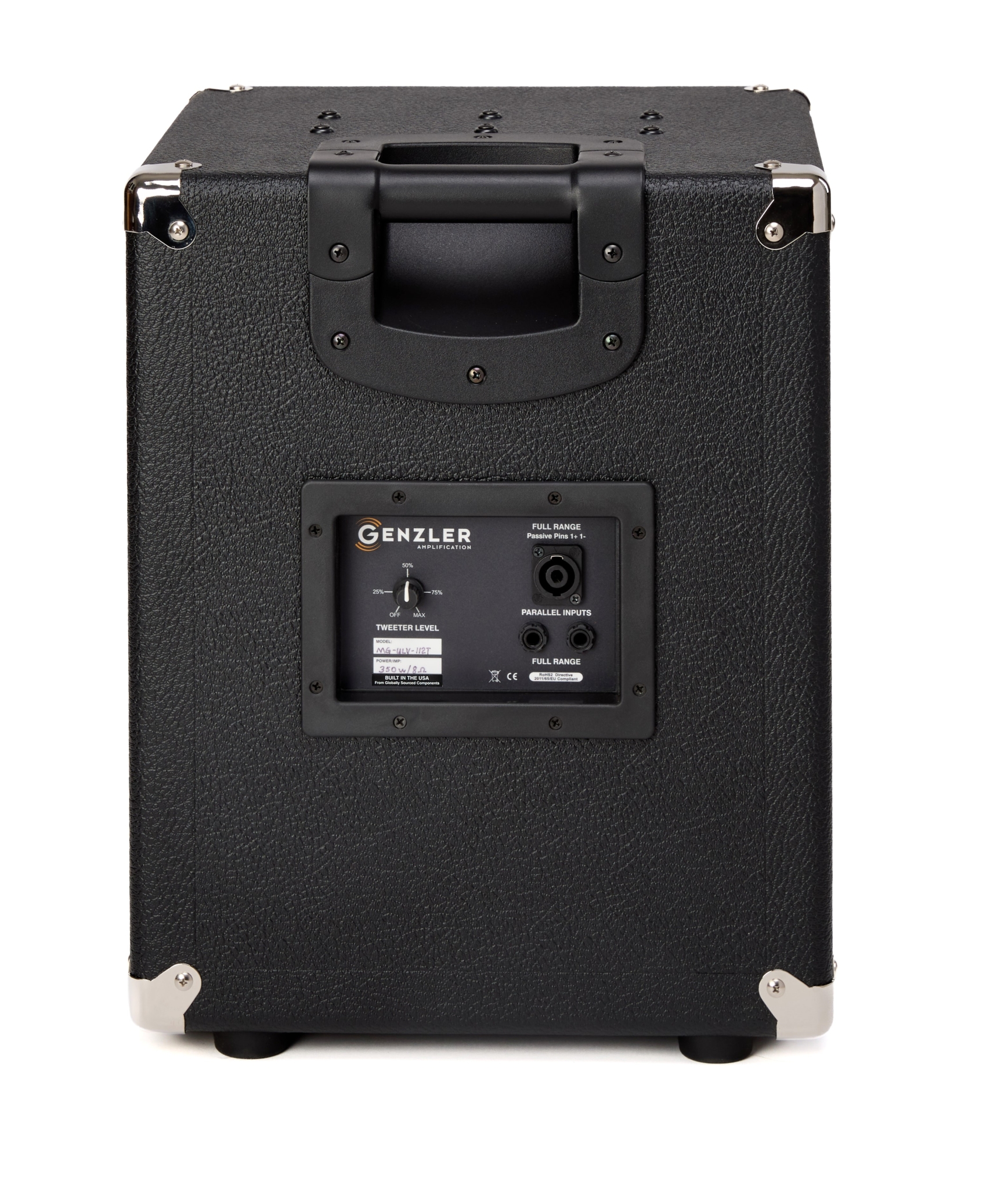

Input Panel/Crossover Network:

  • Custom designed 12dB/octave slope with 100W L-Pad level control.
  • One — SpeakON® NL-4 connector and two – ¼” sealed jacks; to reduce rear cabinet air loss and noise.

Cabinet Finish:

  • Heavy-duty textured black vinyl.
  • Metal nickel corners.
  • Comfortable, top/rear mounted, edge-lift bar handle
  • Black woven grille cloth with metallic silver piping.
  • Large rubber feet.

(Specifications are subject to change)
